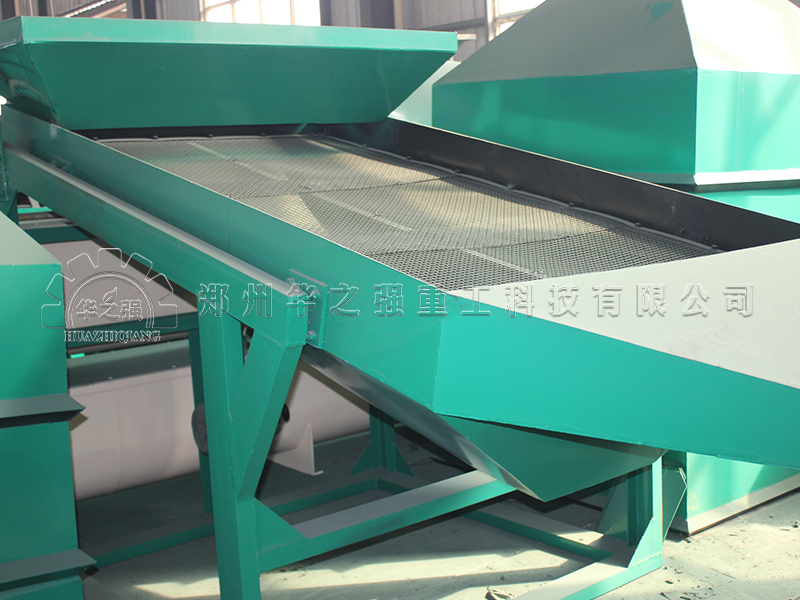

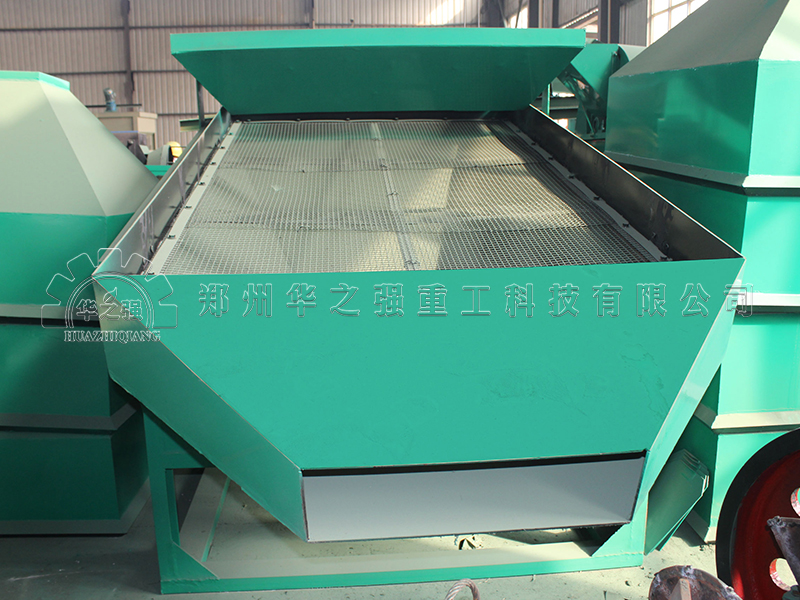

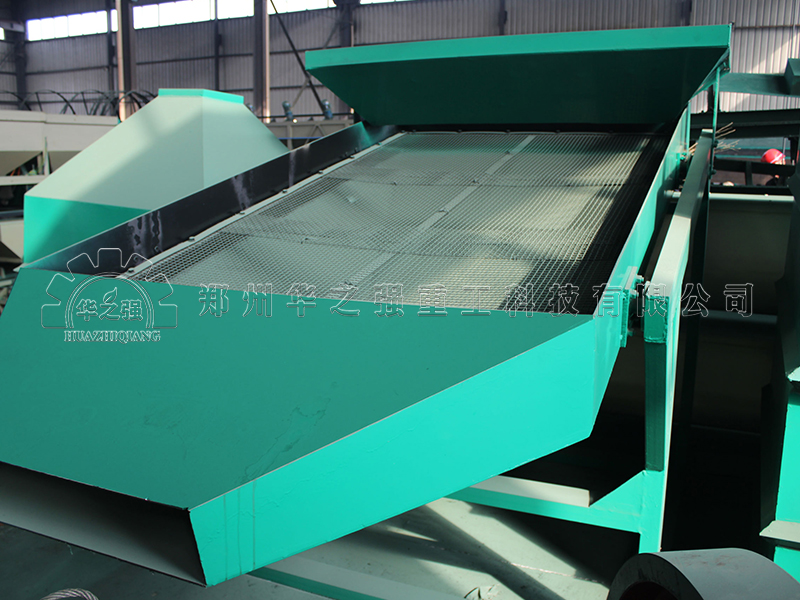

振动筛分机
用途与特点：
振动筛利用振动电机作为振动源，物料从给料机均匀地进入筛分机的进料口，使物料在筛网上被抛起，同时向前作直线运动，通过多层筛网产生数种规格的筛上物、筛下物、分别从各自的出口排出。具有耗能低、产量高、结构简单、易维修等特点，更适合于生产线作业。振动筛亦可对粉状、颗粒状物料的筛选和分级，广泛应用于肥料、磨料、化工、医药、建材、粮食、炭素等行业的生产作业。
Vibrating Screening Machine
Use and Features:
The vibrating screen uses the vibrating motor as the vibration source, the material enters the feeding port evenly from the feeder, so that the material is thrown up on the screen, and moved forward linearly at the same time. Several kinds of sieves and sifter are produced by the multi-layer screen, and are respectively discharged from respective outlets. It has the characteristics of low energy consumption, high capacity, simple structure, easy maintenance and so on, which is more suitable for production line operation. The vibrating screen can also be used for the screening and grading of powdery and granular materials. It is widely used in the production of fertilizer, abrasive, chemical, pharmaceutical, building materials, grain, carbon and other industries.
振动筛分机是我厂为复合肥料的筛分而设计研发的，筛体分为单层和双层两种，筛网采用锰钢，结构简单，操作方便。筛网孔径可根据用户要求选定。
用途及特点
振动筛利用振动电机作为振动源，物料从给料机均匀地进入筛分机的进料口，使物料在筛网上被抛起，同时向前作直线运动，通过多层筛网产生数种规格的筛上物、筛下物、分别从各自的出口排出。具有耗能低、产量高、结构简单、易维修等特点，适合于生产线作业。振动筛亦可对粉状、颗粒状物料的筛选和分级，应用于肥料、磨料、化工、建材、粮食、炭素等行业的生产作业。
动力从电机经三角皮带传递至激振器主动轴、齿轮振动器（速比为1），实现三根轴同速旋转，产生激振力，激振器与筛箱螺栓联接，产生椭圆运动。物料在筛面上随筛机高速椭圆运动，分层、透筛、向前，以此来完成物料的分级。
技术参数
|
型号 |
ZS1×3 |
ZS1.2×4 |
ZS1.4×5 |
|
筛选面积㎡ |
3 |
4.8 |
7 |
|
生产能力t/h |
3-5 |
5-8 |
8-15 |
|
电机功率kw |
1.5 |
2.2 |
1.5×2 |
|
震动频率r/min |
960 |
960 |
960 |
|
振幅mm |
4-6 |
4-6 |
4-6 |
|
外形尺寸m |
3.4×1.5×2.7 |
4.1×1.6×3.8 |
5.4×1.7×4.1 |
|
设备重量kg |
1850 |
3500 |
4500
|
